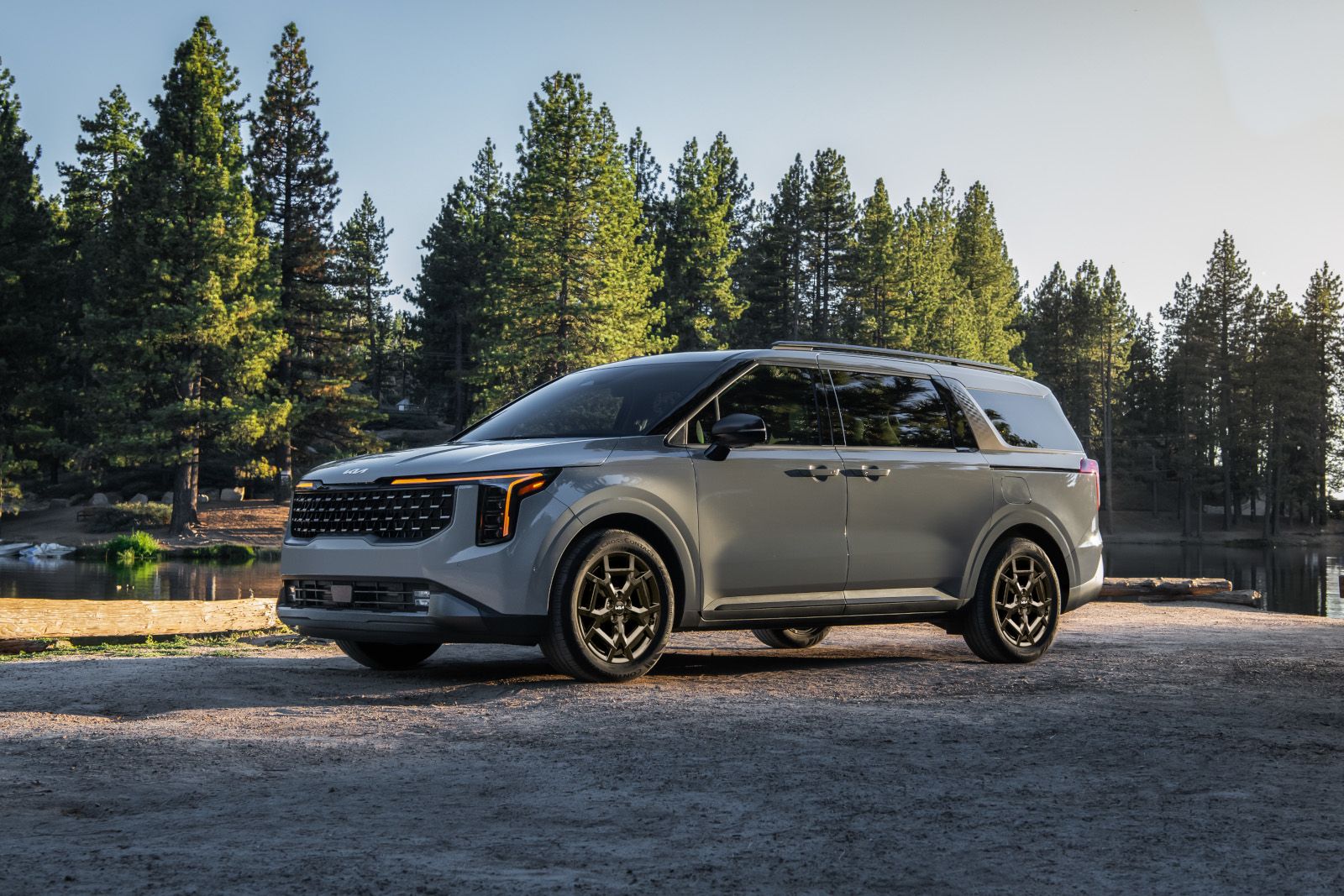

Does the 2027 Kia Carnival HEV Lower Daily Commuting Fuel Costs?

The 2027 Kia Carnival HEV is built around a dedicated hybrid drivetrain, not a fuel-saving tweak to a standard gas engine. Ontario families who want a full-size minivan with genuine fuel savings will find that the Carnival HEV delivers a system engineered from the ground up: a 1.6L turbocharged four-cylinder paired with a permanent-magnet synchronous electric motor and a six-speed automatic transmission, all driving the front wheels. That architecture produces 242 hp and 270 lb-ft of combined torque, while returning a combined fuel economy rating of 7.2 L/100 km on regular-grade fuel.

With five HEV trims running from LX HEV through to SX+ HEV, there is a meaningful range of features and seating layouts to navigate. This guide walks through what separates each trim, how the hybrid powertrain compares to the gas Carnival, and which configuration makes the most sense for your family.

2027 Kia Carnival HEV vs. Gas Carnival: Key Specs at a Glance

The gas Carnival edges ahead in peak horsepower and 0–100 km/h time, and carries a higher tow rating. The HEV counters with a substantial fuel-economy advantage: 4.1 L/100 km better in combined driving, and notably stronger in city conditions where the electric motor contributes most. Torque favours the HEV at 270 lb-ft versus 260 lb-ft, which translates to confident low-speed pull.

HEV Powertrain: How the System Works

The Carnival HEV uses a 1.6L Gamma II turbocharged four-cylinder with gasoline direct injection, producing 177 hp on its own. The permanent-magnet synchronous electric motor adds 72 hp and 224 lb-ft of torque, resulting in a combined 242 hp and 270 lb-ft sent through a six-speed automatic transmission to the front wheels. The system runs on regular-grade fuel and carries a 72-litre tank.

• Combined output: 242 hp and 270 lb-ft of torque
• City fuel economy: 6.9 L/100 km (vs. 12.9 L/100 km for the gas Carnival)
• Highway fuel economy: 7.5 L/100 km
• Towing capacity: 3,000 lbs (1,361 kg)
• Transmission: Six-speed automatic with paddle shifters and shift-by-wire (all HEV trims)

2027 Carnival HEV Trim Comparison

All five HEV trims share the same drivetrain. The differences come down to features, seating, and technology.

Shift-by-wire is standard across every HEV trim. Remote Smart Parking Assist arrives at SX HEV and carries through to SX+ HEV. The SX+ HEV is the only trim configured as a seven-passenger van, adding second-row VIP lounge seating with captain’s chairs, power reclining, a leg rest, relaxation mode, and heated and ventilated second-row seats.

Interior, Dimensions, and Cargo

The Carnival HEV shares the same footprint across all trims: 5,155 mm long, 1,995 mm wide, and a 3,090 mm wheelbase. Height varies slightly by trim and powertrain, with HEV models sitting 10 mm taller than their gas counterparts due to the hybrid components.

Cargo volume reaches a maximum of 4,110 litres with all rear rows folded. The front suspension uses MacPherson struts; the rear uses a multi-link setup. Ground clearance for the HEV is 172 mm, slightly higher than the 162 mm on the gas Carnival.

• Length / Width / Wheelbase: 5,155 mm / 1,995 mm / 3,090 mm
• Max cargo volume: 4,110 L
• Ground clearance (HEV): 172 mm
• Front headroom: 1,039 mm (LX/LX+/EX trims); 1,009 mm (SX/SX+ trims)
• Second-row legroom: 1,029 mm (8-passenger); 1,045 mm (7-passenger SX+)

Which Carnival HEV Trim Is Right for You?

Choose LX HEV if you want the entry point into the hybrid lineup with shift-by-wire and 17-inch wheels. It seats eight and covers the fundamentals without additional feature layers.

Choose LX+ HEV if you want a step up from LX without moving to 19-inch wheels. It adds to the LX base and keeps the 17-inch tire size.

Choose EX HEV if 19-inch wheels and a broader feature set matter to you while staying in an eight-passenger layout. The EX HEV sits at a mid-point in the lineup.

Choose SX HEV if Remote Smart Parking Assist is a priority. It adds that feature alongside 19-inch wheels and retains eight-passenger seating.

Choose SX+ HEV if your family wants the seven-seat VIP lounge configuration. Second-row passengers get captain’s chairs, power reclining, a leg rest, and heated and ventilated seating. This is the flagship HEV trim.

If towing heavier loads is a regular requirement, the gas Carnival’s 3,500 lbs (1,588 kg) rating versus the HEV’s 3,000 lbs (1,361 kg) is worth considering. For families prioritising fuel costs over long-term city and mixed driving, the HEV’s 7.2 L/100 km combined rating versus 11.3 L/100 km for the gas model is a clear advantage.

The 2027 Carnival HEV Arrives Soon: Connect with Orillia Kia

The 2027 Kia Carnival HEV is coming, and the trim you choose will shape how your family uses it every day. Whether the LX HEV’s straightforward hybrid value or the SX+ HEV’s seven-seat lounge layout fits your needs, the powertrain delivers 242 hp, 7.2 L/100 km combined, and shift-by-wire across the board.

Visit Orillia Kia in Orillia to sit in the Carnival, talk through the trim differences, and find the configuration that fits your family.

To learn more about the 2026 Kia Carnival, visit Kia.ca
